Description

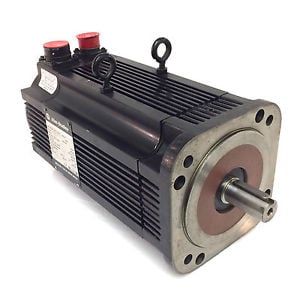

The Allen-Bradley 1326AB-B520E-21 servo motor is designed to deliver precise control and efficient performance in demanding industrial automation environments. With a robust voltage rating of 460/380V AC and a powerful 2.9 kW output, this motor offers exceptional dynamic response and torque handling for various motion control applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
1326AB-B520E-21
|
| Subcatecory |
|
| Voltage |
460/380V AC |
| Frame Diameter |
149 mm |
| Rated Motor Speed |
3000 rpm 460VAC; 2500 380VAC |
| Flange and Shaft Series |
IEC Metric Flange with Keyway |
| Motor Rated Torque |
13.1 Nm |
| Motor Rated Output |
2.9 kW |
| Standard Option |
N/A |
| System Continuous Torque |
13.1 Nm |
| System Peak Stall Torque |
39.3 Nm |
| Weight |
55.58 lbs |
Information About 1326AB-B520E-21
The 1326AB-B520E-21 is a high-performance AC synchronous servo motor built for use with compatible Allen-Bradley drives. It features a 149 mm IEC metric frame and is equipped with a flange and shaft series including a keyway, providing secure and accurate mechanical connections. This model operates at a rated speed of 3000 rpm at 460V AC and 2500 rpm at 380V AC, making it suitable for high-speed applications requiring responsive feedback and motion accuracy.
Key Features:
-
High-Speed Operation: Rated for up to 3000 rpm @ 460VAC to meet demanding performance needs.
-
Robust Torque Output: Delivers 13.1 Nm continuous and up to 39.3 Nm peak stall torque.
-
Industrial Voltage Range: Operates on both 460V and 380V AC systems for global flexibility.
-
Precise Mechanical Fit: IEC metric flange and keyed shaft ensure alignment and stability.
-
Durable Build: Designed for use in rugged automation and motion control environments.
The 1326AB-B520E-21 combines power and precision to support industrial motion systems that require consistent, high-speed performance.
