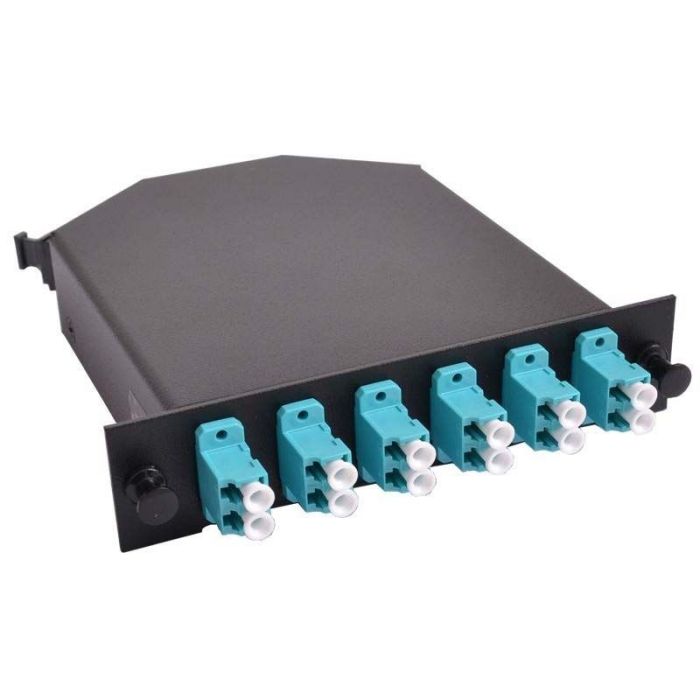

This high-density 12-fiber MPO breakout cassette is designed for rapid plug-and-play deployment in data centers, telecommunications networks, and enterprise infrastructures. It features a premium Multimode OM3 configuration supporting high-speed optical transitions. Configured with a single male MTP connector on the rear, the module breaks out into six LC duplex adapters on the front using Type B polarity, ensuring efficient cable management and reliable network connectivity.
Key Features
- 12-Fiber high-density design
- Multimode OM3 fiber type for high-performance data transmission
- Pre-terminated with a rear male MTP connector transitioning to LC duplex front adapters
- Type B polarity layout
- Easy, toolless installation for quick network expansion
Product Specifications
| Specification |
Value |
| Fiber Count |
12 Fibers |
| Fiber Mode |
Multimode OM3 (50/125µm) |
| Rear Connector Type |
1x MTP Male (with pins) |
| Front Connector Type |
LC/UPC Duplex |
| Polarity |
Type B |
| Application |
High-density fiber routing, patch panels, and optical distribution |
