Description

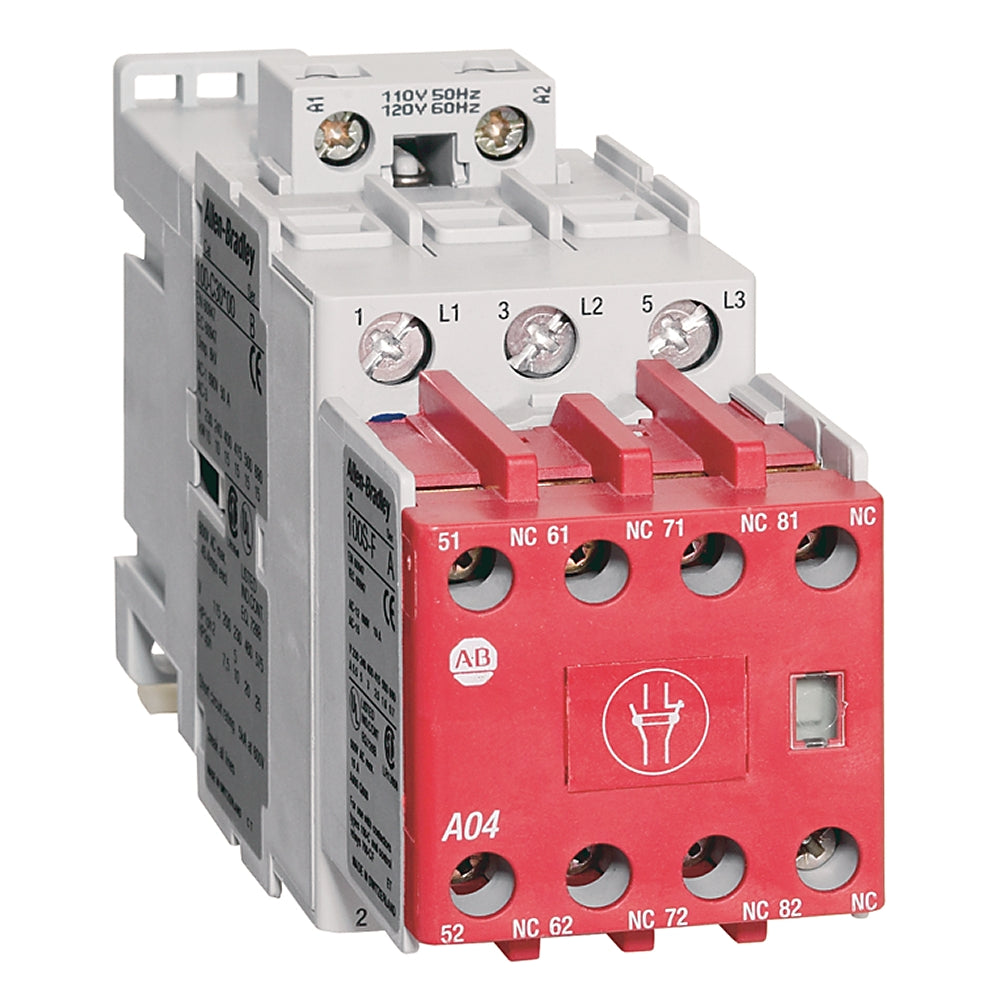

The Allen-Bradley 100S-C30EJ22C is a 30 A safety contactor specifically designed for safety-related control systems, offering dependable performance in safety circuits that demand high integrity and fail-safe switching.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
Contactors and Starters |
| Part Number |
100S-C30EJ22C |
| Subcatecory |
|
| Amperage / Current Rating |
30 Amp |
| Coil Voltage |
24 VDC |
| Power Rating |
10 kW at 230 V, 15 kW at 400/415/500/690 V |
| Number of Power Poles |
3 NO |
| Auxiliary Contact Configuration |
2 NO + 2 NC |
| Conductor Size |
14–4 AWG |
| Temperature Range |
-25°C to 60°C |
| Line Side Coil Termination |
Yes |
| Standards Compliance |
CCC, KC |
| Weight |
1.3700 lb |
Information About 100S-C30EJ22C
The 100S-C30EJ22C is part of Allen-Bradley's Guardmaster safety contactor series, engineered to meet stringent safety standards in industrial automation. It features 3 normally open (NO) power poles rated for 30 A, suitable for motors up to 15 kW at 690V. Its 24 VDC electronic coil supports low-voltage, low-power control circuitry, ideal for safety relays and safety PLCs.
Key Features:
-
30 A Rated Current: Handles medium-power loads across industrial motor and safety circuits.
-
24 VDC Electronic Coil: Provides efficient, noise-free operation compatible with safety control systems.
-
3 NO Power Poles: Offers fail-safe load control in emergency stop or interlock applications.
-
Integrated Auxiliaries (2 NO + 2 NC): Enables status monitoring and feedback integration in safety loops.
-
Wide Temperature Range: Operates from -25°C to 60°C, ideal for varied industrial environments.
The 100S-C30EJ22C is ideal for use in safety-critical systems in robotics, machine tools, conveyors, and other automated equipment requiring redundancy and monitored contact switching.
