Description

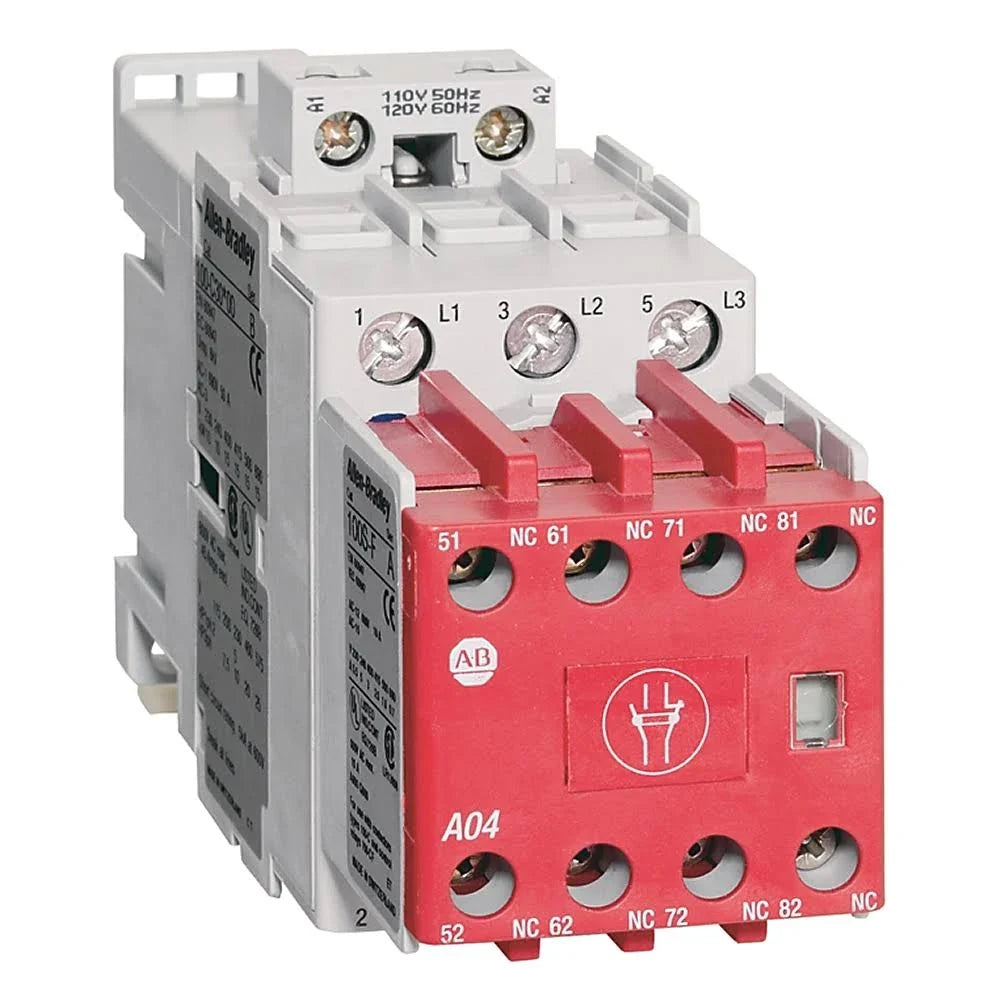

The Allen-Bradley 100S-C23EJ14BC is a 23 A safety-rated contactor designed for use in safety circuits and applications requiring reliable control of electrical loads.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
Contactors & Starters |
| Part Number |
100S-C23EJ14BC |
| Subcatecory |
|
|
|
23 Amp at 400 VAC-3, 32 Amp at 400 VAC-1 |
Contact Configuration
|
1 NO, 4 NC Auxiliary |
|
Standard
|
CCC,KC |
| Voltage |
230-690 VAC at 50 Hz, 115-575 VAC at 60 Hz |
| Coil Voltage |
24 V |
| Contact Rating |
23 A |
| Power Rating |
11 kW |
| No. of Power Poles |
3 N.O. |
| Coil Termination |
Line Side |
| Weight |
1.01 lbs |
Information About 100S-C23EJ14BC
The Allen-Bradley 100S-C23EJ14BC is a safety-rated contactor from the Bulletin 100S-C series, designed for use in safety-critical control systems where high reliability and contact feedback are essential. Engineered with gold-plated bifurcated contacts and mechanically linked auxiliaries, it ensures secure and fail-safe performance in industrial automation environments such as machine guarding, press control, and emergency stop systems.
Key Features:
-
Contactor Type: Safety-rated IEC contactor, part of the 100S-C Guardmaster series, designed for Category 3 and 4 safety applications.
-
Current Ratings:
-
Power Rating: Supports up to 11 kW (15 hp) at 415 V, suitable for medium-duty industrial motors.
-
Control Voltage: 24 VDC coil with integrated suppression (diode), ideal for PLC control.
-
Main Contacts: 3 Normally Open (N.O.) main poles for standard motor control.
-
Auxiliary Contacts: Includes 1 N.O. and 4 Normally Closed (N.C.) gold-plated bifurcated contacts for reliable low-energy signal transmission and diagnostic feedback.
-
Contact Design: Mechanically linked contacts conform to IEC 60947-5-1 Annex L, enabling feedback loop monitoring and safety circuit integrity.
-
Ingress Protection: Rated IP20 for finger-safe operation and enhanced personnel safety.
-
Mounting and Design: Compact DIN rail mountable design with visual coil indicator and fixed safety cover to prevent manual override.
-
Certifications: CE, UL, cUL, SUVA, CCC, and KC certified for global industrial compliance.
-
Applications: Ideal for use in emergency stop circuits, safety interlock circuits, and other functional safety designs where force-guided contact feedback is required.
This safety contactor is part of Allen-Bradley's robust Guardmaster safety component family and integrates seamlessly into Rockwell Automation systems. The 100S-C23EJ14BC is recognized for its compact form factor, safety integrity, and dependable performance in high-risk applications. It is a preferred choice for machine builders and OEMs aiming for compliance with international safety standards such as ISO 13849 and IEC 62061.
