Configurable Automotive Ethernet switch and communication bridge

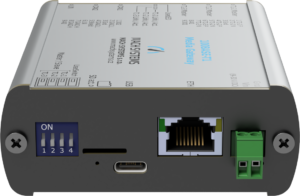

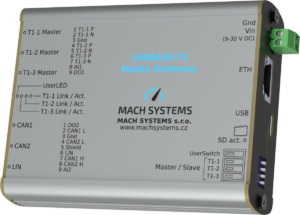

100BASE-T1 Media Gateway is a configurable Automotive Ethernet switch and communication bridge. The device can be used as frame sniffer (Active TAP), employing the packet forwarding function, as well as Ethernet – CAN(/FD) gateway, allowing data to be bi-directionally passed between any of the Ethernet ports and the CAN or CAN FD network.

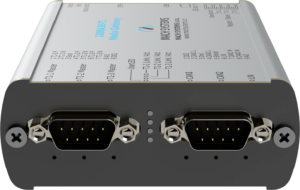

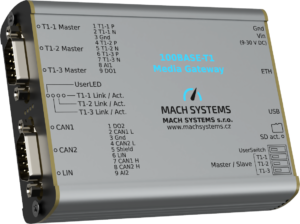

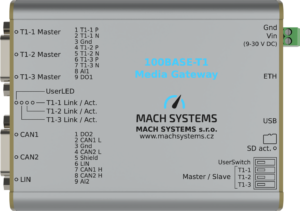

The gateway features three 100BASE-T1 ports, one Gigabit Ethernet (1000BASE-T or 10/100BASE-TX) port, two CAN(/FD) channels, LIN bus, and a USB port. All Ethernet ports are internally connected to a switch circuit. A microSD card slot, two digital outputs, and two analogue inputs are also available.

The free-of-charge C language SDK allows the user to develop a custom device firmware for monitoring/sniffing, testing and simulations.

Applications:

• Configurable Automotive Ethernet switch
• Active TAP (frame forwarding/sniffing)
• Gateway between Ethernet, CAN(/FD), LIN
• User-programmable gateway / simulator
