Description

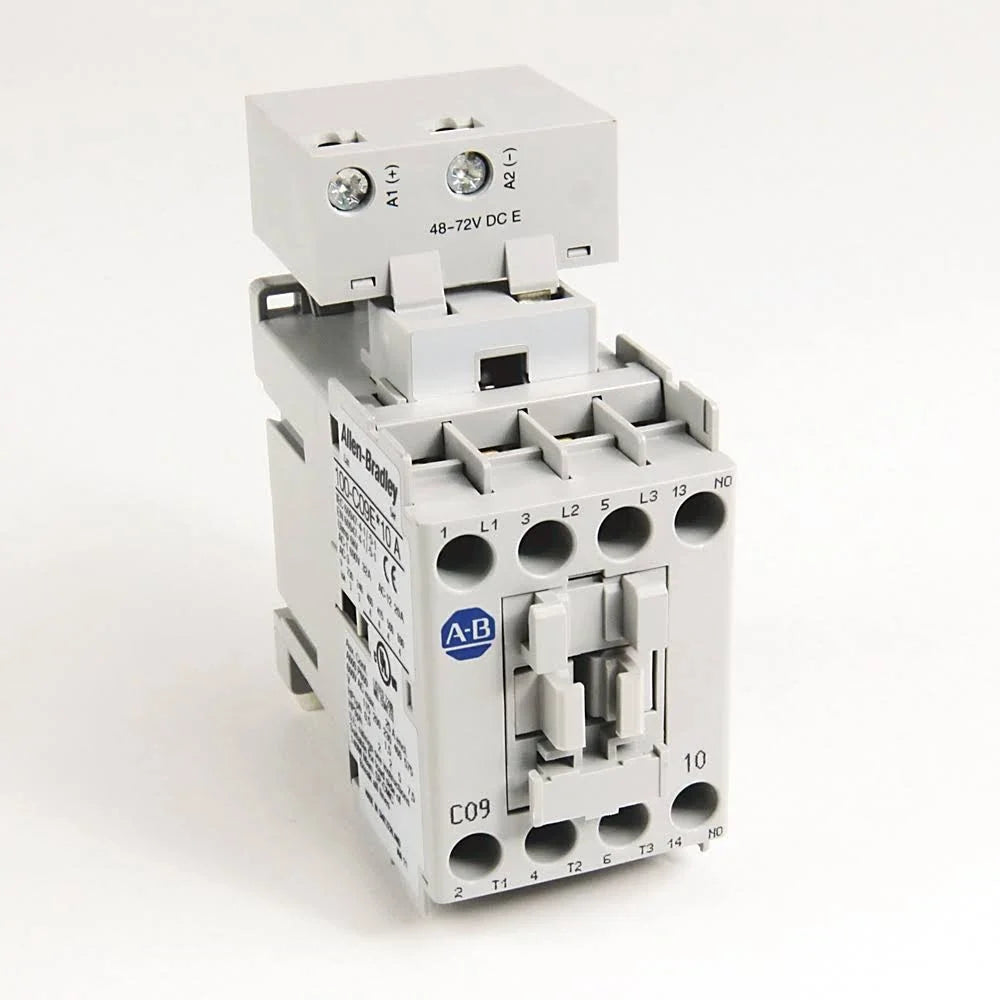

The 100-C09EJ01 is an Allen-Bradley IEC Contactor. It is designed for controlling electrical circuits in industrial applications, specifically following the IEC (International Electrotechnical Commission) standards.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
Contactors & Starters |
| Part Number |
100-C09EJ01
|
| Subcategory |
Contactor
|
|
Amperage
|
9 Amp at 400 VAC-3, 32 Amp at 400 VAC-1 |
| Connection Type |
Screw-Type Terminals |
|
Current
|
9 Amp |
| Standard |
C-TICK,CCC,CE,CSA,CUL,GOST,KC,UL
|
| Coil Voltage |
24 V |
| Contact Configuration |
1 NC Auxiliary |
| Power Rating |
4 kW |
| Terminal Type |
Screw Terminals |
| Voltage |
230-690 VAC at 50 Hz, 115-575 VAC at 60 Hz |
| Product Family |
IEC |
| Weight |
0.86 lbs |
Information About 100-C09EJ01
The Allen-Bradley 100-C09EJ01 is an IEC contactor from the Bulletin 100-C series, designed for controlling electrical circuits in industrial applications. This contactor is used to switch loads, protect equipment, and provide reliable control for motors and other electrical devices. With a 9A current rating, the 100-C09EJ01 ensures safe and efficient operation while meeting international standards for industrial control systems.
Key Features:
-
Function: IEC Contactor for motor and electrical circuit control
-
Current Rating: 9A
-
Coil Voltage: Available in different coil voltage configurations (typically 24V AC, 120V AC, 240V AC, or 24V DC)
-
Mounting: DIN rail mountable for easy installation in control panels
-
Contact Configuration: Normally open (NO) contacts for reliable circuit closure
-
International Standards: Compliant with IEC standards for industrial applications
-
Durability: Designed for long-lasting operation in demanding environments
-
Applications: Ideal for motor control, lighting control, and other industrial load switching operations
This contactor is suitable for a wide range of applications, providing both reliability and protection in electrical systems. Its compact design and robust construction make it a preferred choice for industrial automation.
