Description

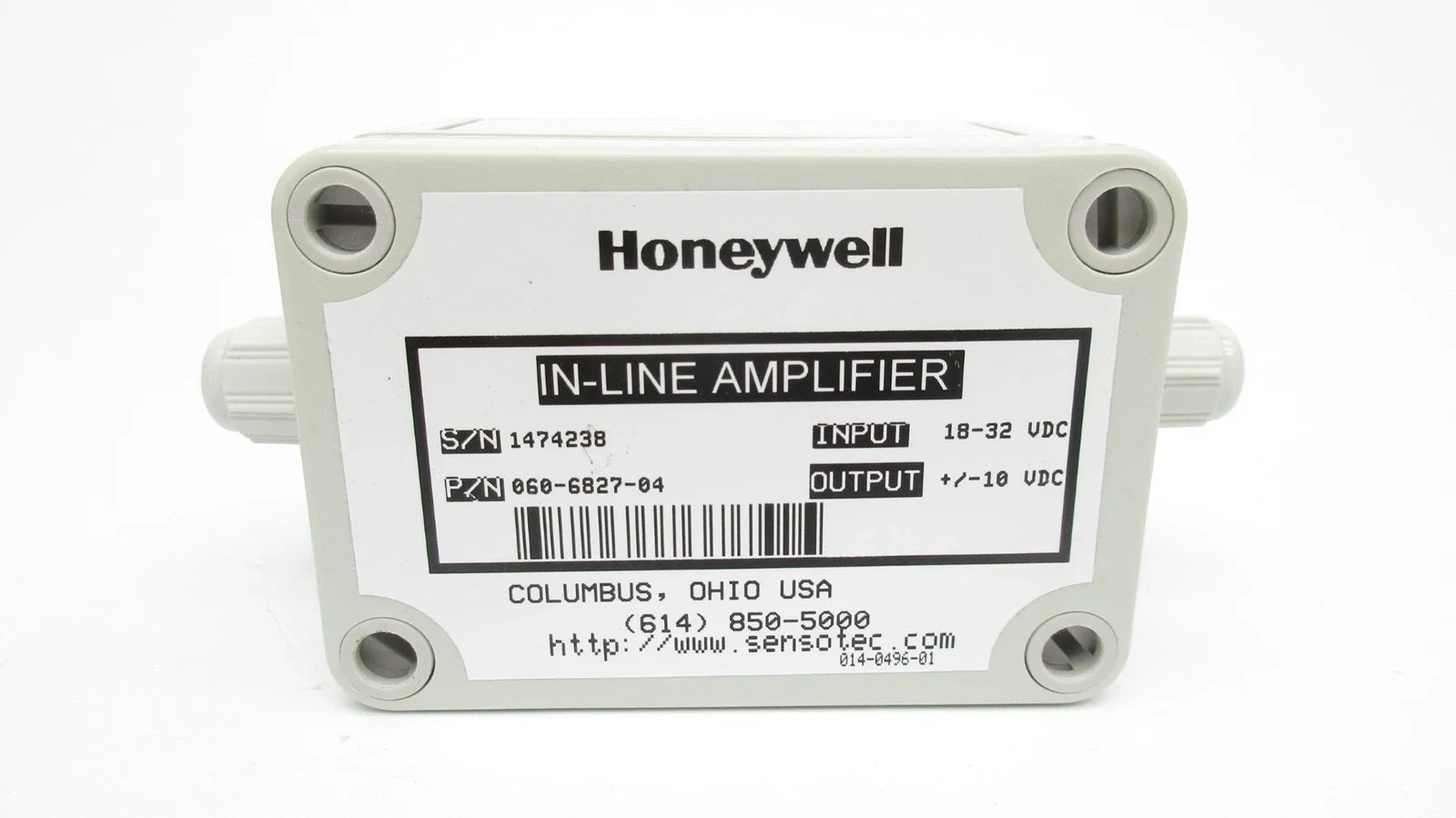

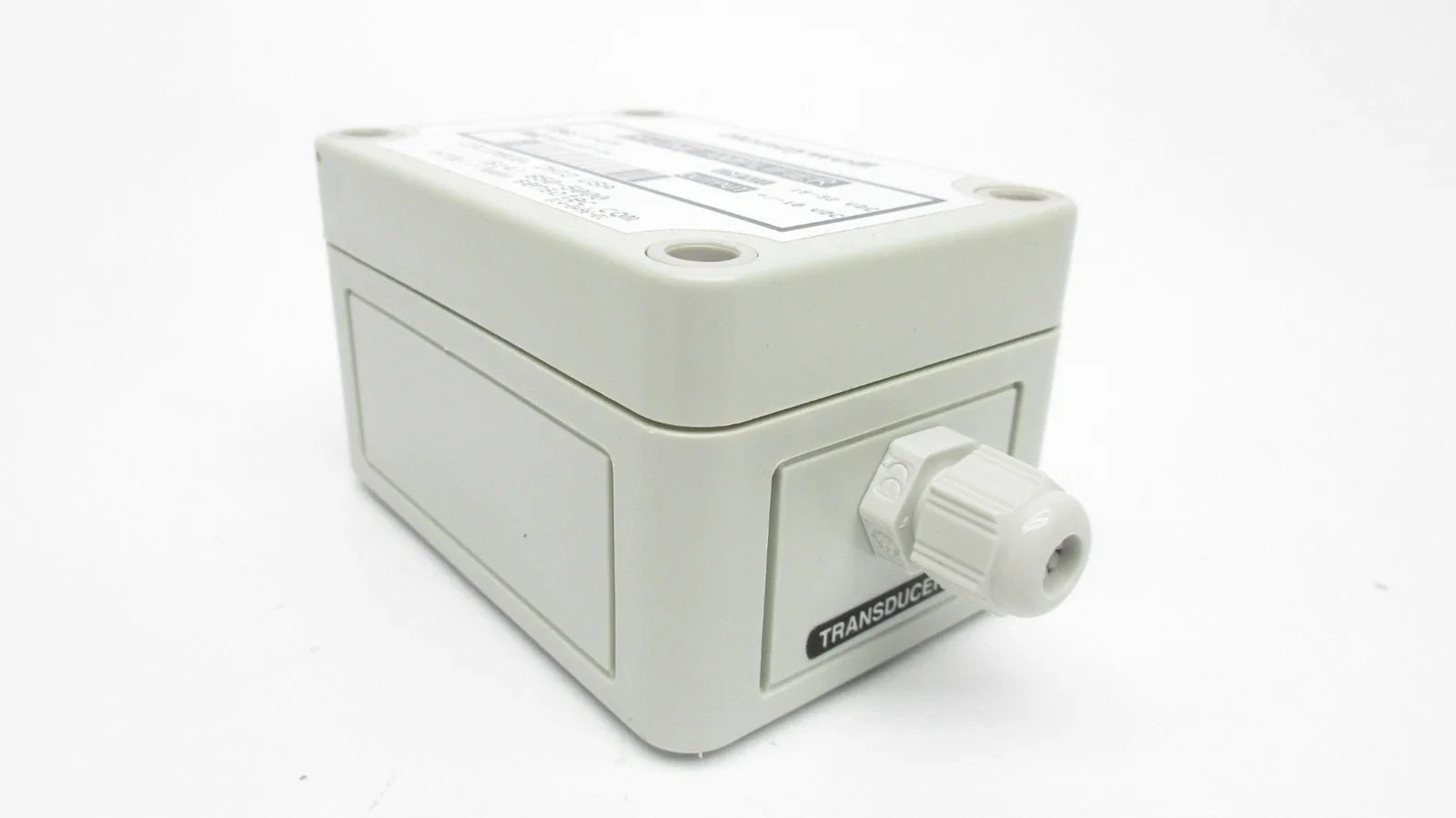

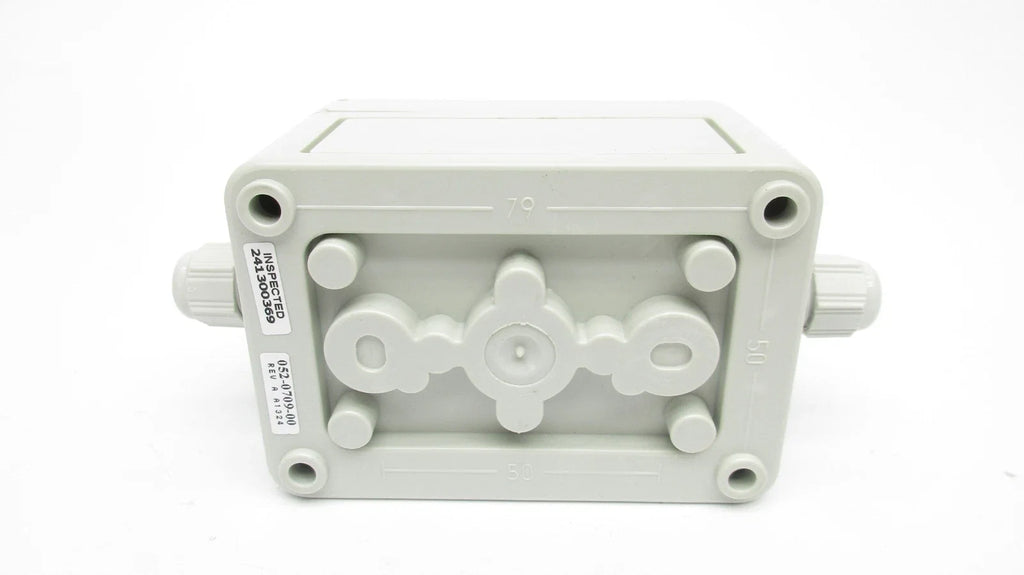

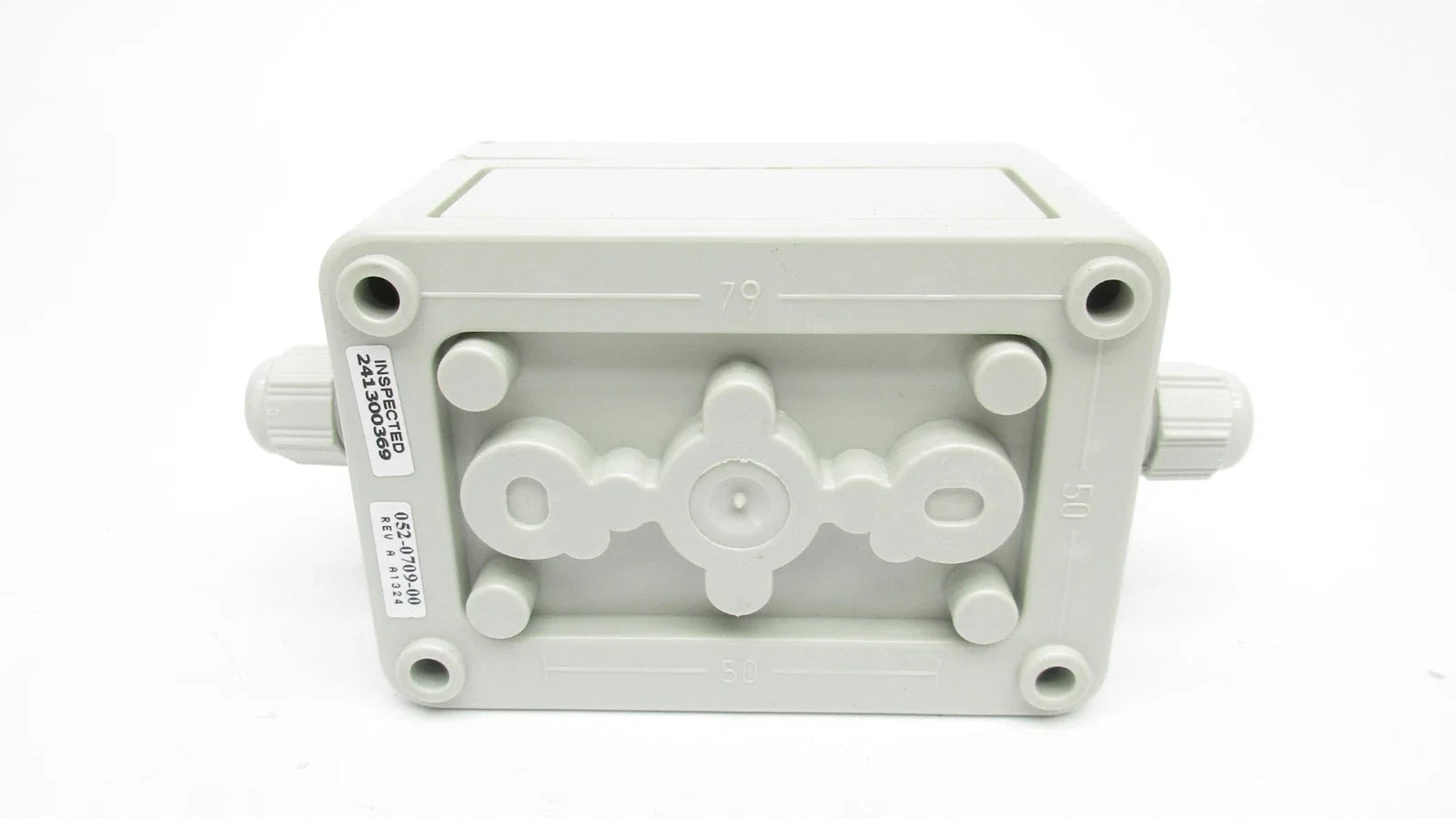

The Honeywell 060-6827-04 UV-10 Universal Inline Amplifier is a precision analog signal conditioner that converts low-level millivolt outputs from strain-gauge transducers into a stable ±10 VDC output. It provides regulated bridge excitation, high linearity, and fast response for use with force, torque, and pressure sensors.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell Sensing and Productivity Solutions |
| Category |
Sensors & Switches |
| Part Number |
060-6827-04 |
| Subcategory |
Sensor Amplifier |
| Series |
UV-10 |
| Amplifier Type |
Analog output, inline strain gauge amplifier |
| Number of Channels |
1 |
| Supply Voltage |
18 VDC to 32 VDC |
| Output Type |
±10 VDC analog |
| Output Current |
2.5 mA |
| Current Draw |
60 mA |
| Excitation Voltage |
3 VDC, 5 VDC, or 10 VDC @ 50 mA |
| Transducer Type |
Bridge-based sensor (strain gauge) |
| Linearity |
0.02 % of full scale |
| Frequency Response (-3 dB) |
7000 Hz (350 Ω bridge) / 5000 Hz (5000 Ω bridge) |
| Rise Time (0–90 %) |
54 ms (350 Ω bridge), 78 ms (5000 Ω bridge) |
| Signal-to-Noise Ratio |
65 dB |
| Power Supply Rejection |
> 110 dB |
| Zero Adjustment (Coarse/Fine) |
±30 % / ±15 % |
| Span Adjustment |
1 mV/V to 20 mV/V ±25 % fine |
| Operating Temperature |
–15 °C to 71 °C (5 °F to 160 °F) |
| Sealing |
IP66 / NEMA 4 |
| Mounting |
#6 or #8 screw chassis mount |
| Case Material |
Plastic or painted aluminum |
| Dimensions (Plastic Case) |
63.5 mm H × 96.25 mm L × 53.3 mm D (2.5 × 3.75 × 2.1 in) |
| Dimensions (Aluminum Case) |
76.2 mm H × 127 mm W × 63.5 mm D (3 × 5 × 2.5 in) |
| Compliance |
RoHS Compliant |
| Weight |
0.60 lbs |
Information About 060-6827-04
The 060-6827-04 (Series UV-10) amplifier is designed for bridge-based transducers and delivers highly stable excitation voltages of 3 VDC, 5 VDC, or 10 VDC. It operates from an 18 VDC to 32 VDC supply and provides a ±10 VDC analog output proportional to the input signal. Featuring coarse and fine zero adjustments, span adjustment up to ±25 %, and a built-in solid-state shunt calibration relay, it allows quick setup and calibration without disconnecting the transducer. Its compact, IP66/NEMA 4-rated enclosure ensures reliable operation in demanding industrial environments such as testing, automation, and process control.
Key Features:
- Universal Bridge Amplifier: Designed for strain-gauge and bridge-based transducers.
- Wide Excitation Options: Selectable 3 VDC, 5 VDC, or 10 VDC regulated excitation for sensor compatibility.
- Precision Output: Provides stable ±10 VDC analog signal proportional to the transducer input.
- Wide Supply Range: Operates on 18 VDC to 32 VDC power for flexible integration.
- High Accuracy: Linearity within ±0.02 % of full scale ensures measurement precision.
- Solid-State Shunt Calibration: On-board calibration relay allows fast verification of system accuracy.
- Fast Response: 7000 Hz bandwidth with 54–78 ms rise time supports dynamic applications.
- Environmental Protection: IP66/NEMA 4 housing ensures durability in harsh industrial environments.
- Adjustable Zero and Span: Coarse (±30 %) and fine (±15 %) zero plus ±25 % span trim.
- Compact Mounting: Chassis-mount design using #6 or #8 screws simplifies installation.
- Global Compliance: RoHS-compliant design, suitable for worldwide use.
The 060-6827-04 UV-10 amplifier delivers stable, accurate, and rugged performance for precision signal conditioning across industrial and laboratory applications.
