Description

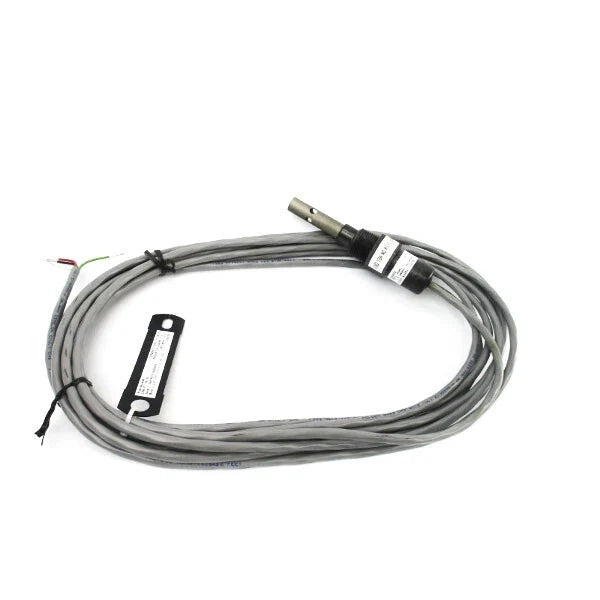

The Honeywell 04973-X01-333-20-00-000-000 is a titanium-electrode conductivity cell designed for precise measurement of low-conductivity fluids in industrial processes. Built with a 0.1 cm⁻¹ cell constant and integrated temperature compensation, this sensor ensures accurate readings and easy integration with Honeywell controllers for water treatment, boiler feed, and ion-exchange monitoring systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
04973-X01-333-20-00-000-000 |
| Subcategory |
Conductivity Transmitter |
| Series |
4973 |
| Cell Constant |
0.1 cm⁻¹ |
| Electrode Material |
Titanium |
| Body Material |
Polyethersulfone (PES) |
| Temperature Compensation |
Automatic (ATC) |
| Mounting Thread |
¾″ NPT male |
| Lead Wire Length |
20 ft (6 m) |
| Max Temperature |
140 °C (284 °F) |
| Max Pressure |
250 psig |
| Installation Type |
Insertion / Flow-through |
| Compatible Controllers |
Honeywell APT2000, APT4000CC, UDA2182 |
| Typical Applications |
Water treatment, boiler feed, rinse tanks, ion-exchange systems |
| Output Type |
Conductivity signal with temperature compensation |
| Maintenance |
Low, corrosion-resistant design |
| Weight |
1.10 lbs |
Information About 04973-X01-333-20-00-000-000
The 04973-X01-333-20-00-000-000 belongs to Honeywell’s 4973 series of conductivity cells engineered for continuous measurement in demanding environments such as chemical processing, power generation, and water purification. Featuring a rugged polyethersulfone (PES) body with corrosion-resistant titanium electrodes, the sensor is rated for pressures up to 250 psig and temperatures up to 140 °C. Its 0.1 cm⁻¹ cell constant makes it ideal for low-conductivity liquids, while the automatic temperature compensator ensures stable output across varying conditions. The model’s ¾″ NPT male connection and 20-foot lead wire facilitate straightforward installation and reliable data transmission to Honeywell APT or UDA controllers.
Key Features:
- 0.1 cm⁻¹ Cell Constant: Provides accurate measurement of low-conductivity fluids in water treatment and rinse applications.
- Titanium Electrodes: Ensure excellent corrosion resistance and stable long-term performance.
- Automatic Temperature Compensation: Delivers consistent accuracy over a wide temperature range without external modules.
- ¾″ NPT Male Mounting: Allows simple and secure installation in standard process piping or flow cells.
- Durable PES Body: Withstands harsh industrial chemicals, high pressure, and elevated temperatures.
- 20-Foot Lead Wire: Offers installation flexibility and easy routing to control systems or junction boxes.
- High-Temperature and Pressure Ratings: Suitable for continuous use up to 140 °C and 250 psig, maintaining calibration stability.
- Broad System Compatibility: Designed for seamless integration with Honeywell APT2000/4000CC and UDA2182 conductivity controllers.
- Insertion or Flow-Through Configuration: Can be used directly in tanks or pipelines for real-time conductivity monitoring.
- Low-Maintenance Design: Requires minimal cleaning and calibration thanks to the robust titanium electrode surface.
The 04973-X01-333-20-00-000-000 delivers the precision, reliability, and durability required for industrial water analysis and process conductivity control.
