[shortdesc] Industrial NGFW, 8 Gbps firewall throughput, 6x Gigabit Ethernet ports, fanless rugged design, SD-WAN and ZTNA support, including 1 year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Model |
FortiGate Rugged 70G |
| SKU |
FGR-70G-BDL-950-12 |
| Product Type |
Rugged Next-Generation Firewall (NGFW) |
| Form Factor |
DIN-rail mountable |
| Processor |
FortiSP5 |
| Operating System |
FortiOS |
| Firewall Throughput |
8 Gbps |
| NGFW Throughput |
1.5 Gbps |
| Threat Protection Throughput |
1.3 Gbps |
| IPS Throughput |
2.5 Gbps |
| VPN Throughput (IPsec) |
7.1 Gbps |
| Concurrent Sessions |
1,400,000 |
| New Sessions per Second |
85,000 |
| Ethernet Interfaces |
6 × GE RJ45 |
| SFP Slots |
2 × GE SFP |
| Bypass Ports |
1 × GE RJ45 bypass pair (PORT1 & PORT2) |
| USB Ports |
1 × USB 2.0 |
| Console Ports |
1 × RJ45 console |
| Serial Interface |
1 × RJ45 |
| Bluetooth |
Bluetooth Low Energy (BLE) |
| Trusted Platform Module |
Yes (TPM) |
| IP Rating |
IP40 |
| Power Supply |
12V to 125V DC redundant dual inputs |
| Average Power Consumption |
18.3 W |
| Maximum Power Consumption |
19.9 W |
| Dimensions (H × W × D) |
111 × 69 × 122 mm |
| Weight |
1 kg |
| Operating Temperature |
−40 °C to 75 °C |
| Storage Temperature |
−40 °C to 85 °C |
| Operating Humidity |
5% to 95% non-condensing |
[/properties]
[specifications]
| Firewall Performance |
IPv4 firewall throughput up to 8 Gbps (1518 / 512 / 64 byte UDP) |
| Firewall Latency |
5.82 µs (64-byte UDP) |
| Firewall Throughput (Packets) |
12 Mpps |
| Application Control Throughput |
3.6 Gbps (HTTP 64K) |
| SSL Inspection Throughput |
1.4 Gbps |
| SSL Inspection CPS |
715 |
| SSL Inspection Concurrent Sessions |
1,400,000 |
| IPsec VPN Tunnels (Gateway to Gateway) |
200 |
| IPsec VPN Tunnels (Client to Gateway) |
500 |
| Virtual Domains (VDOMs) |
10 (default / maximum) |
| Maximum FortiAPs |
96 total / 48 tunnel |
| Maximum FortiSwitches |
24 |
| Maximum FortiTokens |
500 |
| High Availability |
Active-Active, Active-Passive, Clustering |
| Encryption |
AES 256-bit, SHA 256, SSL, TLS 1.3 |
| Supported Network Protocols |
DNS, HTTP, HTTPS, IPSec, IPv4, IPv6, TCP/IP, UDP |
| Certifications |
IEC 61850-3, IEEE 1613, EN 55032 Class A, EN 55035, FCC Part 15 Class A, CE, UL/cUL, CB, USGv6 |
| Environmental Compliance |
RoHS |
[/specifications]
[accesories]
| Optional |
GE SFP transceiver modules; Rugged DIN-rail power supplies; Industrial-grade SFP modules (SMF/MMF) |
[/accesories]
Rugged Security Built for Harsh and Industrial Networks

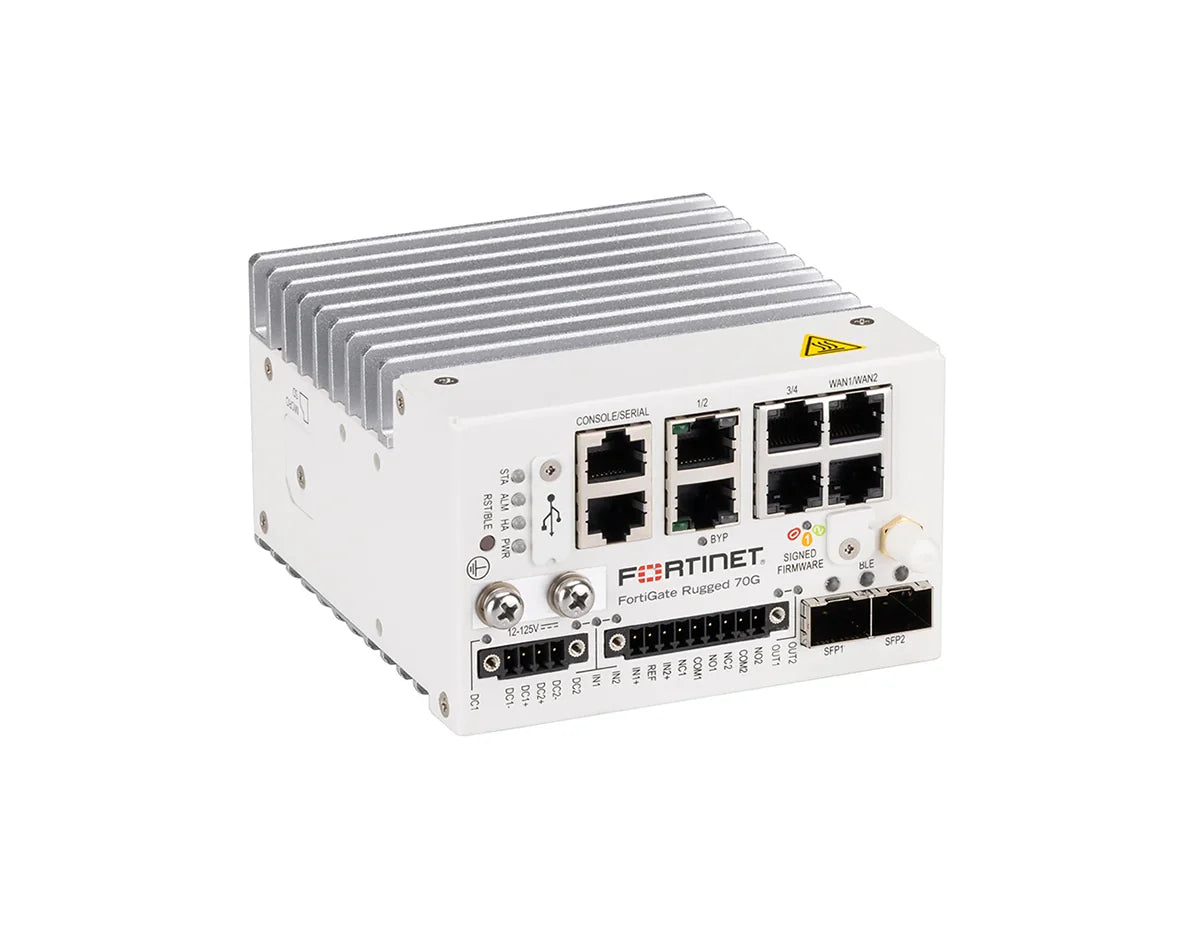

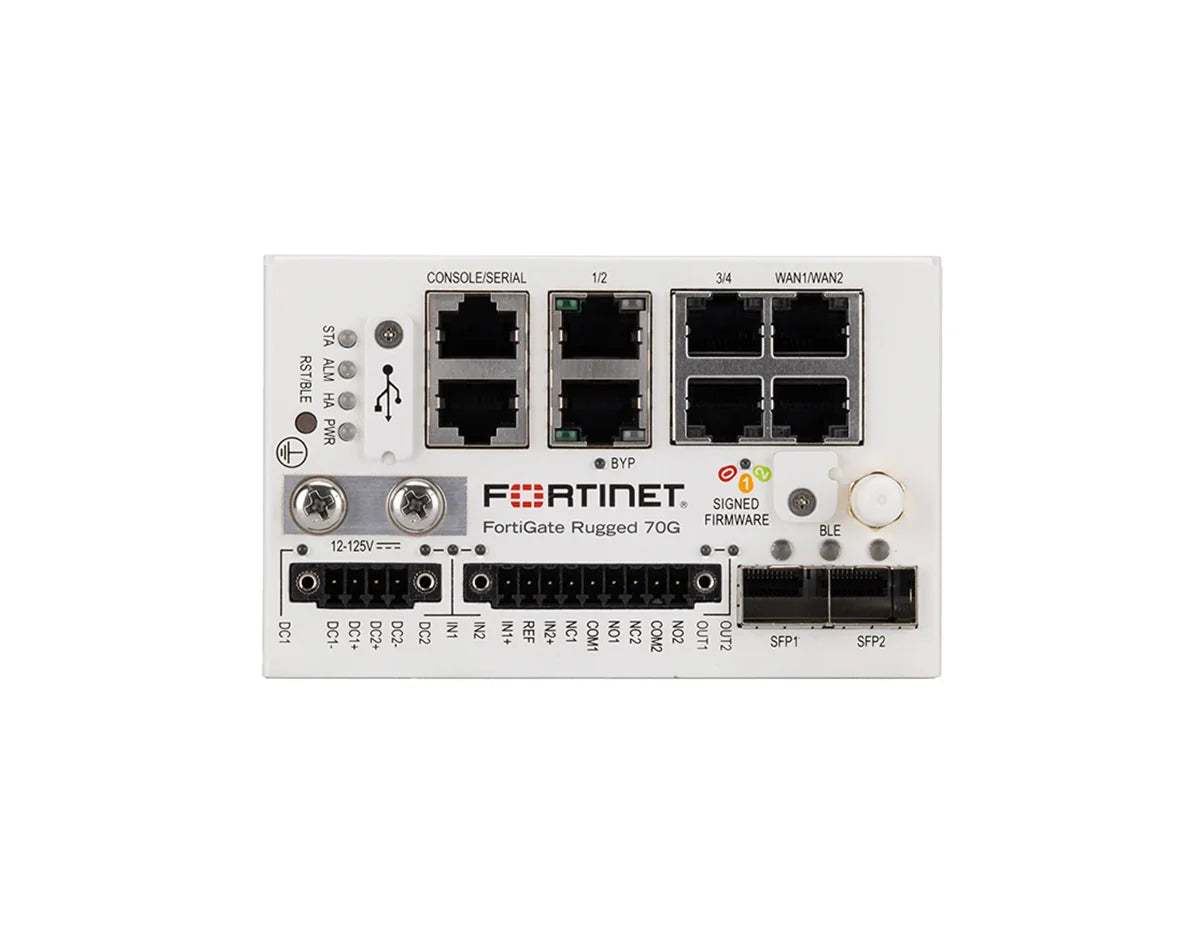

The Fortinet FortiGate Rugged 70G Firewall (FGR-70G-BDL-950-12) is a next-generation firewall engineered for mission-critical industrial and operational technology (OT) environments. Designed to operate reliably in extreme temperatures and harsh conditions, it delivers enterprise-grade security without compromising network performance. Powered by Fortinet’s proprietary FortiSP5 secure processor and running on FortiOS, the 70G provides deep visibility, advanced threat prevention, and high-speed connectivity at the network edge.
This fanless, DIN-rail-mountable appliance combines NGFW security, SD-WAN, and Zero Trust Network Access (ZTNA) into a single ruggedized platform, making it ideal for remote sites, factories, utilities, transportation systems, and critical infrastructure deployments where traditional appliances cannot survive.
Key Benefits & Features
-
Industrial-Grade Rugged Design: Fanless IP40-rated hardware built to operate from -40°C to 75°C, ensuring reliability in harsh industrial environments.
-
High-Performance NGFW: Delivers up to 8 Gbps firewall throughput with 2.5 Gbps IPS and 1.5 Gbps NGFW performance driven by the FortiSP5 processor.
-
Advanced Threat Protection: Supports IPS, SSL inspection, application control, malware protection, and AI-powered FortiGuard services to secure OT networks.
-
Integrated Secure SD-WAN: Optimizes WAN connectivity while enforcing consistent security policies across distributed and remote sites.
-
Hardware-Based Trust: Built-in Trusted Platform Module (TPM) ensures secure boot and hardware-level protection against tampering.
Ideal Use Cases
- Industrial and OT network security
- Utilities, energy, and critical infrastructure sites
- Transportation, rail, and roadside deployments
- Remote and unmanned facilities
- Secure SD-WAN edge for harsh environments
Technical Specifications
-
Firewall Throughput: Up to 8 Gbps
-
IPS Throughput: Up to 2.5 Gbps
-
NGFW Throughput: Up to 1.5 Gbps
-
VPN Throughput: Up to 7.1 Gbps (IPsec)
-
Network Ports: 6x Gigabit Ethernet RJ45, 2x SFP slots
-
Concurrent Sessions: Up to 1.4 million
-
Form Factor: DIN-rail mountable, fanless
-
Operating Temperature: -40°C to 75°C
-
Operating System: FortiOS
Included Security Subscription (1 Year)
- FortiCare Premium support with ticket handling, advanced hardware replacement (NBD), and access to firmware and general upgrades.
- FortiGuard Unified Threat Protection (UTP) services providing core network security capabilities.
- UTP services may include features such as Intrusion Prevention (IPS), Advanced Malware Protection, Antivirus, Botnet IP and Domain Protection, and FortiGate Cloud Sandbox, depending on supported hardware capabilities.
- Additional security services may include Application Control, URL DNS and Video Filtering, and Anti-spam.
Secure Your Industrial Edge Today
Deploy the Fortinet FortiGate Rugged 70G Firewall to protect critical networks with uncompromising performance and reliability. Order today.
