[shortdesc]2U rack server, Intel Xeon 6, DDR5 memory, NVMe storage, iDRAC management, PCIe Gen5[/shortdesc]

[properties]

Brand	Dell
Model	PowerEdge R570
SKU	R570
Product Type	Rack Server
Series	PowerEdge
Form Factor	2U rack server
Processor	One Intel® Xeon® 6 processor
Memory	16 DDR5 DIMM slots, speeds up to 6400 MT/s
Drive Bays	Front and rear bay configurations available
Power	Hot swap redundant power supplies
Cooling	Air cooling
Dimensions	86.8 mm x 482.0 mm x 802.38 mm with bezel

[/properties]

[specifications]

Processor Options	One Intel® Xeon® 6 E-core processor with up to 144 cores One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option
Memory Capacity	Intel® Xeon® 6 E-core processor supports RDIMM 1 TB max Intel® Xeon® 6 P-core processor with R1S option supports RDIMM 4 TB max
Memory Type	Registered ECC DDR5 DIMMs only
Internal RAID Controllers	PERC H3651 DC-MHS, PERC H9651 DC-MH, PERC H3651 Adapter, PERC H9651 Adapter
Internal Boot	Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS), M.2 interposer with up to 2 x M.2 NVMe SSDs, USB
External Controllers	PERC H9656, HBA 465e
Drive Bays Available	Up to 12 x 3.5-inch SATA (HDD) RAID max 384 TB Up to 4 x EDSFF E3.S Gen5 NVMe max 245.76 TB Up to 8 x 2.5-inch NVMe RAID max 491.52 TB Up to 8 x 2.5-inch NVMe max 491.52 TB Up to 8 x 2.5-inch SATA max 30.72 TB Up to 8 x 2.5-inch SATA/Universal max 491.52 TB Up to 16 x 2.5-inch SATA RAID max 61.44 TB Up to 24 x 2.5-inch SATA max 92.16 TB Up to 8 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 491.52 TB Up to 8 x EDSFF E3.S (cold-aisle) Gen5 NVMe 491.52 TB Up to 16 x EDSFF E3.S (cold-aisle) Gen5 NVMe max 983.04 TB Up to 16 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 983.04 TB Up to 32 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 1966.08 TB
Power Supplies	800 W Platinum/Titanium, 1100 W Platinum/Titanium, 1500 W Titanium, 1500 W 277 Vac/HVDC Titanium, 1400 W -48 VDC, 1800 W Titanium hot swap redundant options
Fans	Up to six hot plug fans
Embedded Management	iDRAC, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, iDRAC Service Module (ISM)
Security Features	Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt), Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified, Chassis Intrusion Detection
GPU Options	Up to 3 x 400W DW; Up to 4 x 75W SW
DPU Options	NVIDIA BlueField-3 2 x 200 GbE B3220
Front Ports	1 x USB 2.0 Type-C (HOST/BMC Direct), 1 x USB 2.0 Type-A (optional LCP - Secondary KVM), 1 x Mini DisplayPort (optional LCP - Secondary KVM), 1 x DB9 Serial (with front I/O configuration), 1 x Dedicated BMC Ethernet port (with front I/O configuration)
Rear Ports	1 x Dedicated BMC Ethernet port, 2 x USB 3.1 Type-A, 1 x VGA
Internal Port	1 x USB 3.1 Type-A
PCIe Slots	Up to six PCIe slots (x16 connector)
Gen5 PCIe Slots	4
OCP Network Options	Up to two OCP NIC card 3.0 (Two slots on the front or two slots on the rear optional)
Embedded NIC	1 Gb dedicated BMC Ethernet port
Operating Systems	Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, RedHat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

[/specifications]

[accesories]

Compatible Accessories

Optional security bezel

[/accesories]

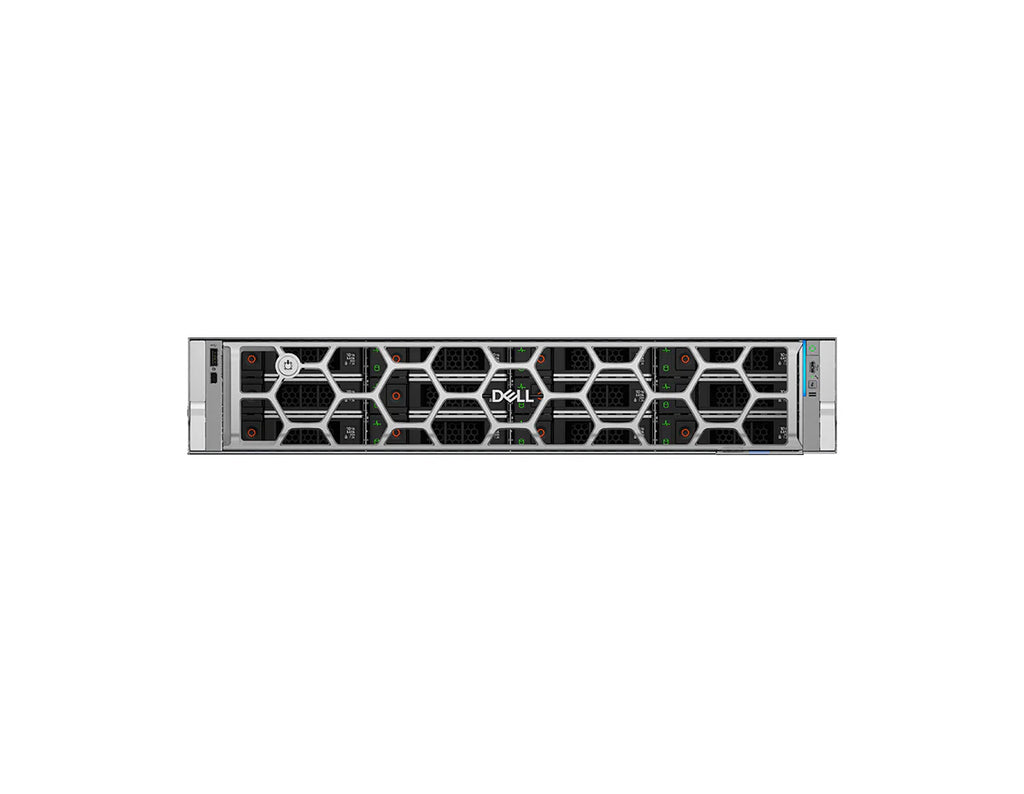

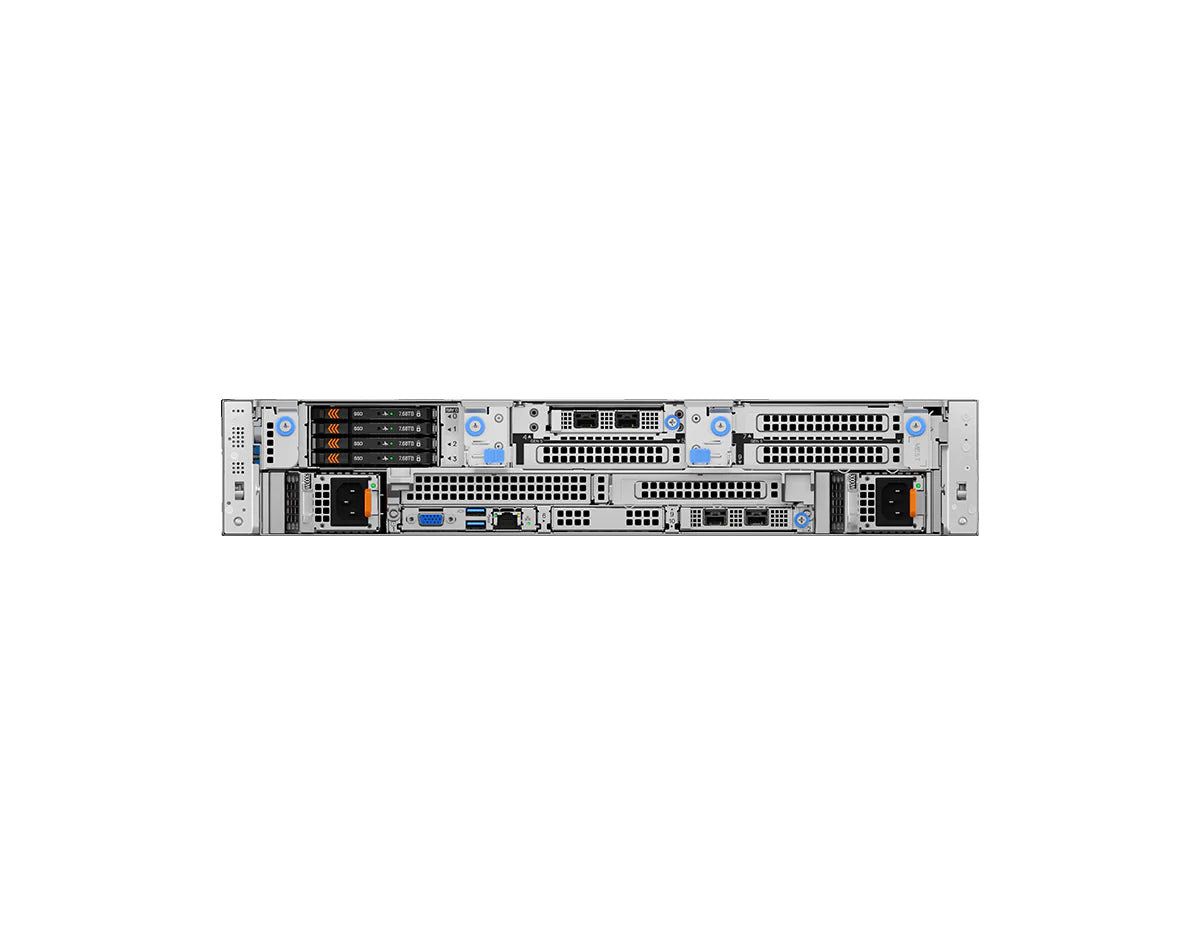

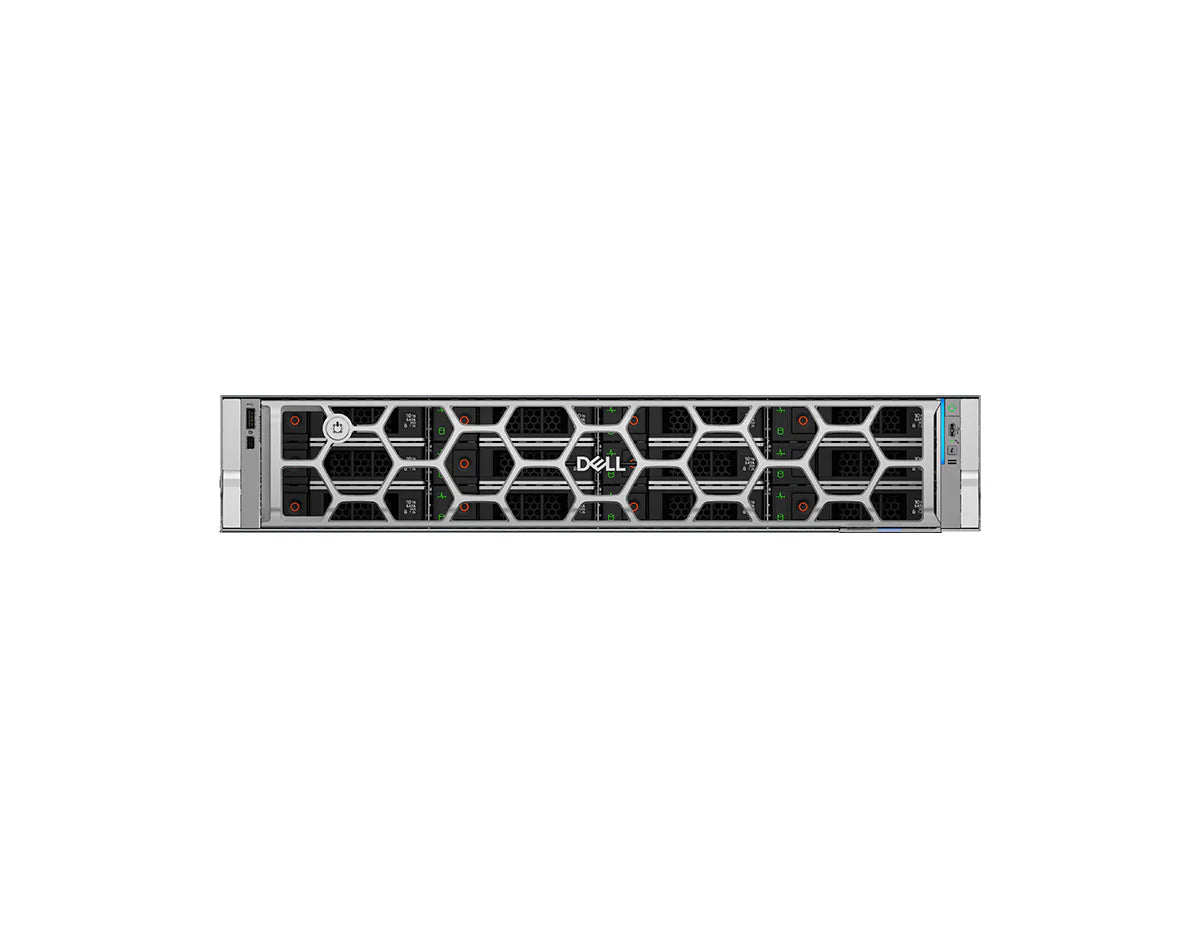

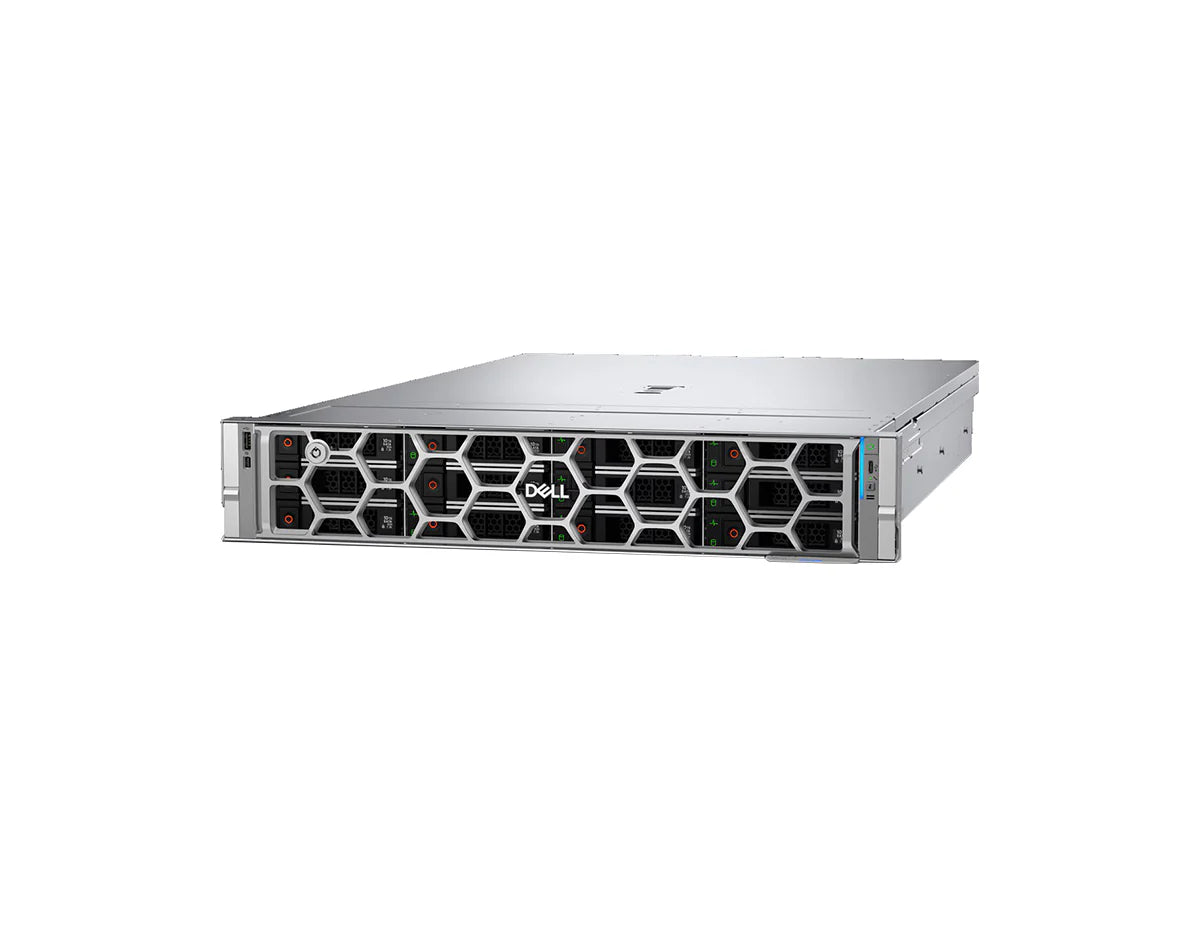

Dell PowerEdge R570 Single-Socket 2U Rack Server

Balanced Performance for Scalable Infrastructure

The Dell PowerEdge R570 is a 2U single-socket rack server designed for enterprise and scalable infrastructure environments that need strong compute capability, efficient operation, and flexible expansion. Built around Intel Xeon 6 processor options, it supports dense virtualization, VDI, scale-out databases, and software-defined storage workloads in a compact rack form factor.

Key Benefits and Features

• Single-socket 2U design for efficient compute density in large datacenters.
• Intel Xeon 6 processor support with high core count options for demanding workloads.
• DDR5 memory architecture with up to 16 DIMM slots and speeds up to 6400 MT/s.
• Flexible front and rear bay storage options including SATA, NVMe, and EDSFF E3.S configurations.
• Integrated Dell OpenManage and iDRAC tools for streamlined server management.

Ideal Use Cases

• Virtualization and medium-density virtual machine environments.
• Virtual desktop infrastructure deployments.
• Scale-out database platforms requiring balanced performance and capacity.
• Software-defined storage nodes in enterprise infrastructure.
• Datacenter refresh projects focused on power efficiency and manageability.

Technical Specifications

• Product Type: 2U rack server
• Processor Support: One Intel Xeon 6 E-core processor with up to 144 cores or one Intel Xeon 6 P-core processor with up to 86 cores with R1S option
• Memory Slots: 16 DDR5 DIMM slots
• Memory Speed: Up to 6400 MT/s
• Memory Type: Registered ECC DDR5 DIMMs only
• Drive Bay Options: Multi-option setups supporting up to 12 x 3.5-inch SATA HDD, 24 x 2.5-inch SATA, or extensive high-density EDSFF E3.S Gen5 NVMe storage arrays
• PCIe Expansion: Up to six PCIe slots with x16 connector support
• Embedded Management: iDRAC, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, and iDRAC Service Module
• Cooling: Air cooling with up to six hot plug fans
• Security Features: Secure Boot, Silicon Root of Trust, Secure Erase, System Lockdown, TPM 2.0 FIPS, and chassis intrusion detection

Deploy the Dell PowerEdge R570 in Your Datacenter

Choose the Dell PowerEdge R570 for scalable server infrastructure that combines modern Intel Xeon 6 compute, DDR5 memory, flexible NVMe and SATA storage options, and integrated Dell management tools for enterprise IT operations.
