[shortdesc]
- Switch, L3, Managed, 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, rack-mountable, PoE+
[/shortdesc]
[properties]
| Properties |
C9200L-48P-4X-E |
| Description |
Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials |
| Product Family |
Catalyst 9200-L |
| Product Type |
Ethernet Switch |
| Number of Ports |
48 |
Downlinks total 10/100/1000
or PoE+ copper ports |
48 ports full PoE+‚ |
| Uplink configuration |
4x 1/10G fixed uplinks |
| Cisco IOS Software |
Network Essentials |

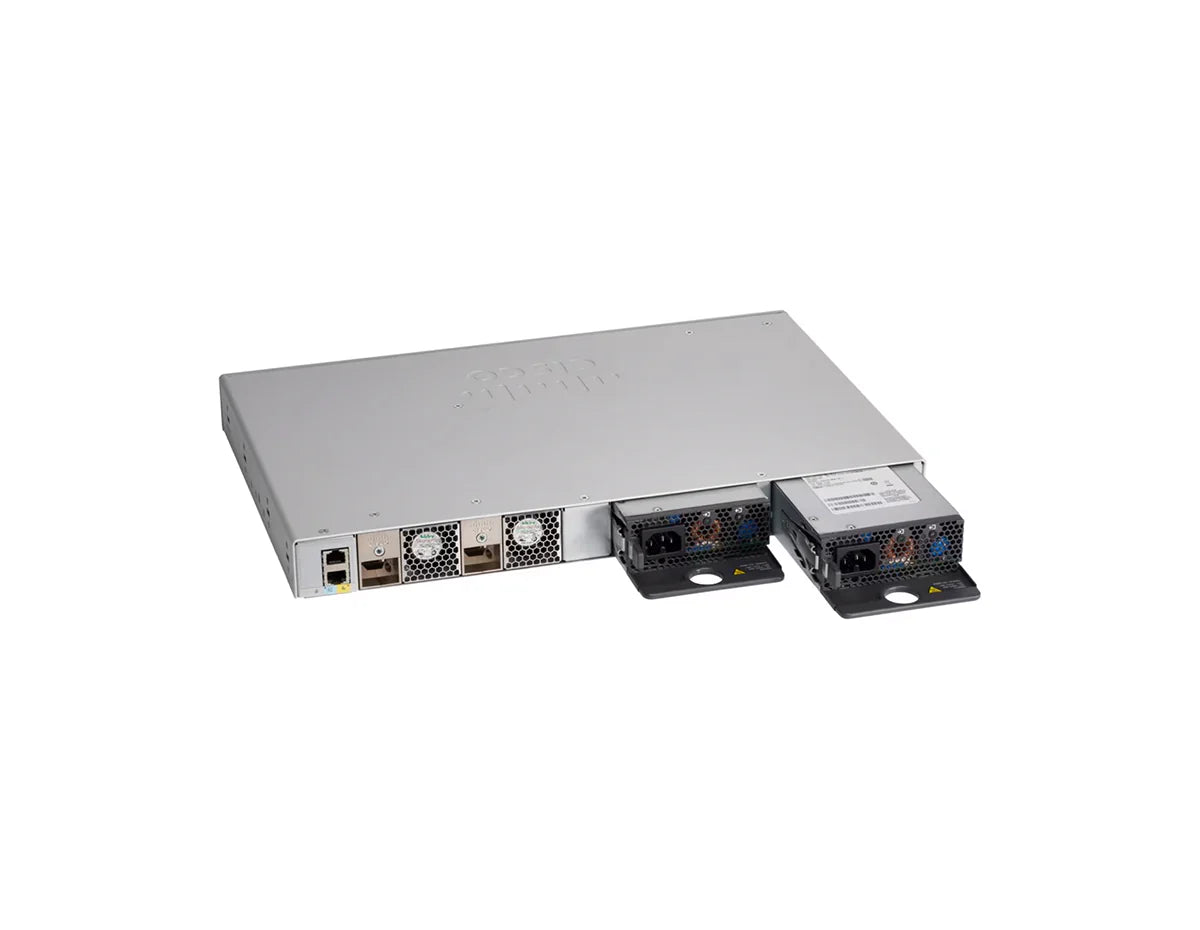

Default primary AC
power supply |
PWR-C5-1KWAC |
Available PoE power with
additional secondary
power supply |
740W |
| Fans |
Fixed redundant |
Chassis + FEP +
‚ Fan Dimensions (HxWxD) Inches |
1.73 x 17.5 x 11.3 |
[/properties]
[specifications]
| Specifications |
C9200L-48P-4X-E |
| Console Ports |
RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor |
| DRAM |
2 GB |
| Flash Memory |
4 GB |
| Switching capacity |
176 Gbps |
| Forwarding rate‚ |
130.95 Mpps |
| MAC addresses |
16000 |
Operating Temperature
Up to 5,000 ft (1500 m) |
-5°C to +45°C |
Operating Temperature
Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety |
IEC 60950-1
UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950.1
Class I Equipment |
Electromagnetic compatibility
certifications |
47 CFR Part 15
CISPR 32 Class A
CNS 13438
EN 300 386*
EN 55032 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
KN 32
TCVN 7189 Class A
V-3 Class A
CISPR 35
EN 300 386*
EN 55035
KN 35
TCVN 7317 |
EMC
compliance |
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
VCCI Class A
CISPR 35
EN 55035, EN300 386*
EN 61000-3-2, EN 61000-3-3 |
Safety
compliance |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| Environmental |
Reduction of Hazardous Substances (ROHS) 5 |
[/specifications]
[accesories]
| Stacking Support |
StackWise-80 |
| Stacking bandwidth support |
80 Gbps |
| Stacking hardware‚ |
C9200L-STACK-KIT |
Number of
members |
8 |
| Supported stack members |
Other C9200L models with the same license level |
|
|
| Stacking accessories |
|
| C9200L-STACK-KIT |
Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable |
| STACK-T4-50CM |
Data stack 50 cm cable (default cable with Stack Kit) |
| STACK-T4-1M |
Data stack 1 m cable |
| STACK T4-3M |
Data stack 3 m cable |
|
|
| Mounting Accessories |
|
| ACC-KIT-T1= |
Accessory kit with 19-inch Type 1 rack mount |
| RACK-KIT-T1= |
19, 23, 24 inches, and ETSI Type 1 rack mount kit |
| 4PT-KIT-T2= |
4 Point rack mount kit New |
| C9K-MGNT-TRAY |
Magnet and Mounting Tray for compact switches |
| C9K-CMPCT-DIN-MNT |
DIN Rail Mount for compact switches |
| RACKMNT-19-CMPACT |
19-Inch Rack Mounting Brackets for compact switches |
| C9K-CMPCT-CBLE-GRD |
Cable guard for compact switches (for C9K-WALL-TRAY) |
| C9K-WALL-TRAY |
Wall mount bracket for compact switches |
| C9K-CMPCT-DESK-MNT |
Under desk mount for compact switches |
[/accesories]
Technical Details

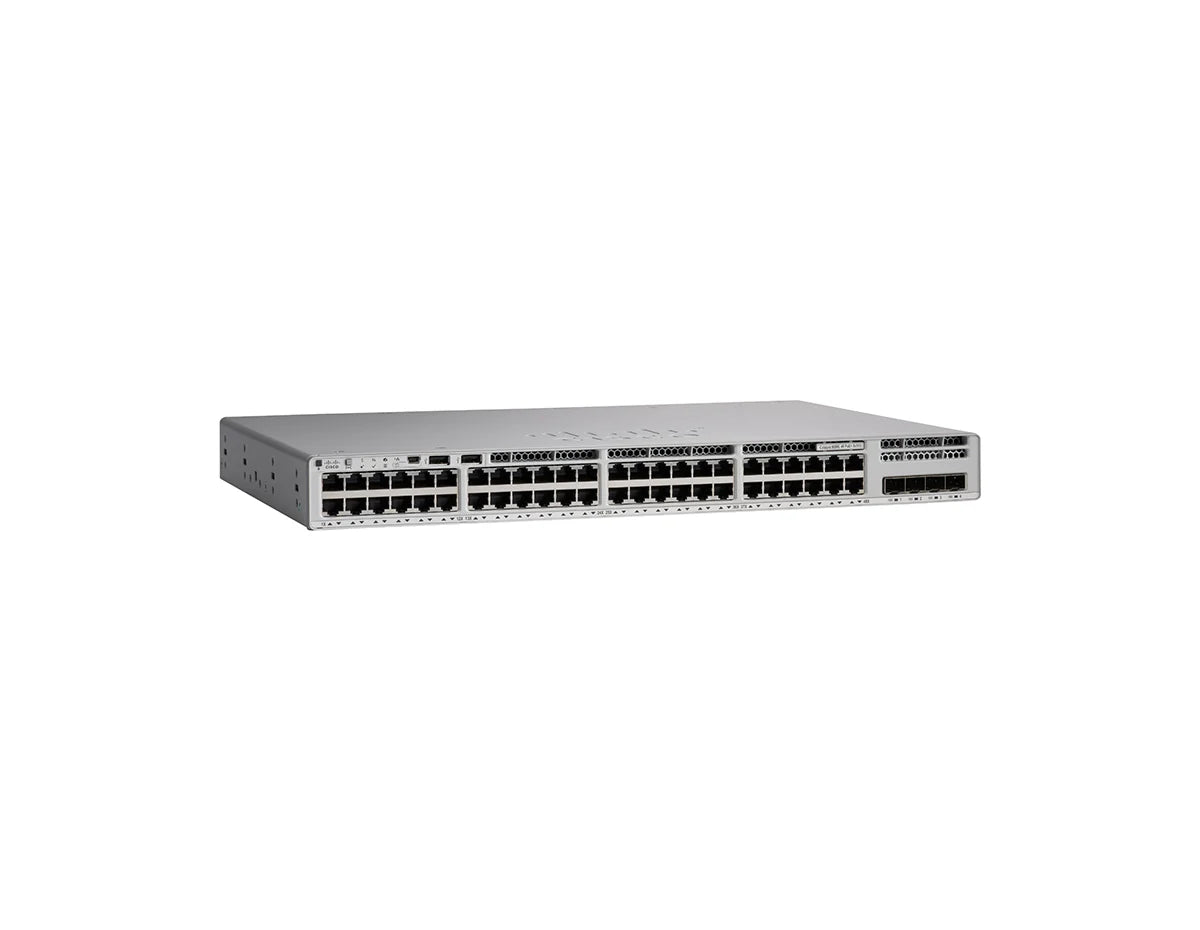

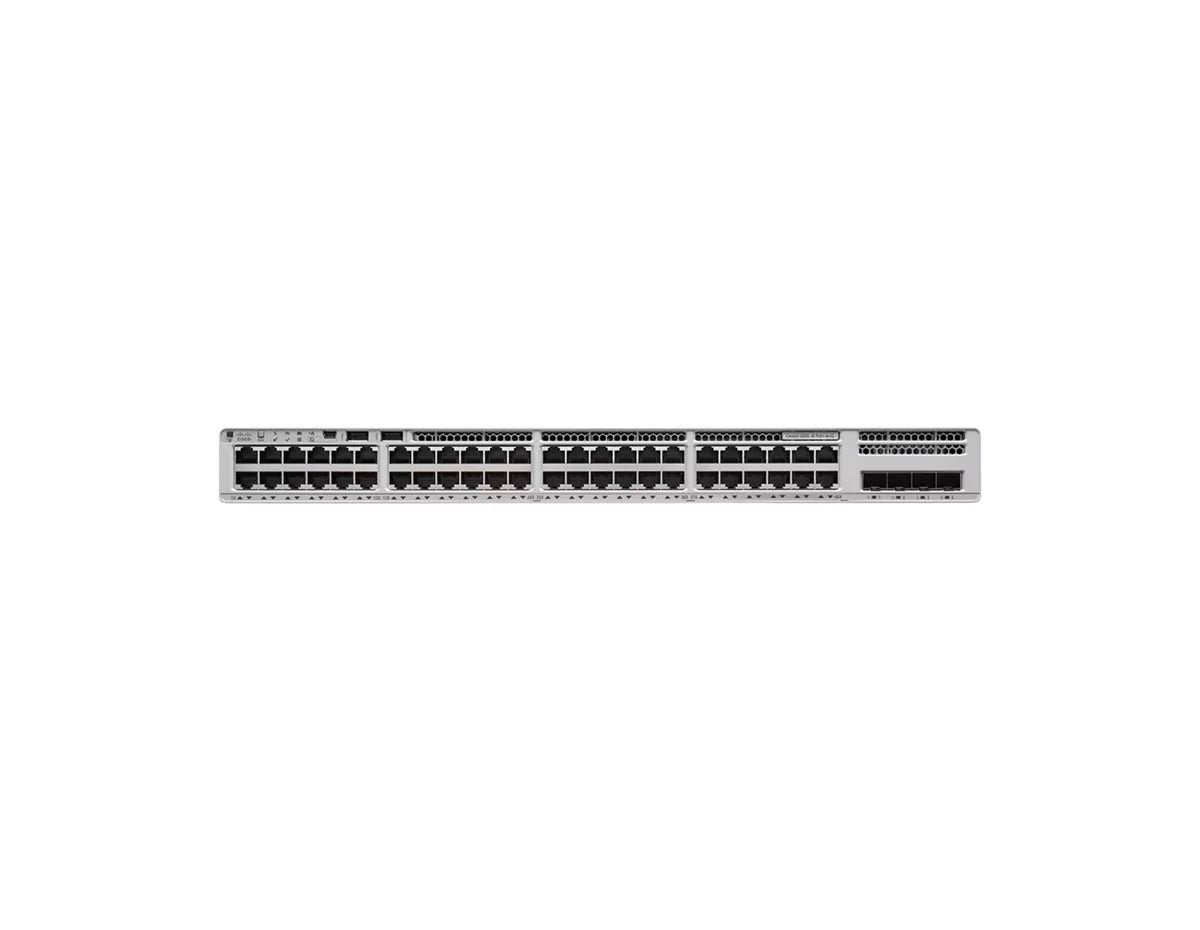

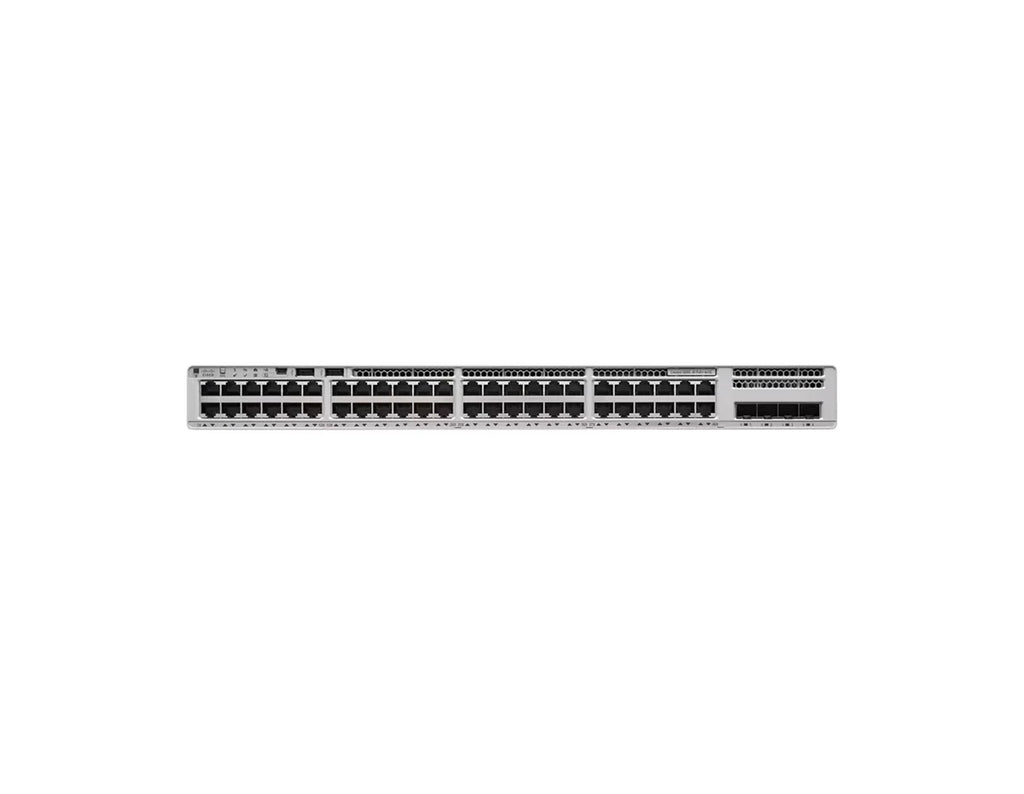

The Cisco Catalyst C9200L-48P-4X-E is a Layer 3 managed 1U rackmount switch with 48 Gigabit (10/100/1000) PoE+ ports and four fixed 1/10G SFP+ uplinks, running Cisco IOS XE with the Network Essentials license. It provides a 740 W PoE+ budget, expandable to 1,440 W with a second power supply, to power devices such as wireless access points, IP phones, and IP cameras. Its switching capacity is 176 Gbps, and its forwarding rate is 130.95 Mpps. It stacks with other Catalyst 9200L switches over Cisco StackWise-80 at 80 Gbps.
Overview
The Cisco Catalyst C9200L-48P-4X-E is a fixed-configuration, 48-port Gigabit PoE+ access switch in the Cisco Catalyst 9200L series.
The Catalyst 9200L series uses fixed uplinks, fixed redundant fans, and Cisco StackWise-80 stacking, and runs Cisco IOS XE on the Cisco UADP 2.0 Mini ASIC. With the Network Essentials license, the C9200L-48P-4X-E supports Layer 2 switching and routed access, including static routing, RIP, EIGRP stub, OSPF up to 1,000 routes, Policy-Based Routing, PIM stub multicast, VRRP, 802.1X, and MACsec-128 encryption. The C9200L-48P-4X-E is an ENERGY STAR certified model.
Cisco positions the Catalyst 9200L as the successor to the end-of-sale Catalyst 2960-X and 2960-XR access switches.
Best For
The Cisco C9200L-48P-4X-E suits campus and branch access-layer deployments that need PoE+ to power wireless access points, IP phones, and IP cameras, with 10G uplinks to an aggregation or core layer. Its 740 W PoE+ budget (1,440 W with a second power supply) is suitable for mixed PoE deployments; the actual device count depends on each powered device's power draw. Its four fixed 1/10G SFP+ uplinks and Network Essentials license make it suitable where 10 Gigabit uplinks and the base feature set (Layer 2 plus routed access) are sufficient.
Not suitable if:
- You need more than 48 access ports.
- You need advanced Layer 3 routing (full OSPF/EIGRP, IS-IS) or segmentation (VRF, SGT).
- You need multigigabit (mGig) access ports above 1 Gbps for Wi-Fi 6E/7 access points.
- You need 25G uplinks.
- You do not need PoE on the access ports.
Part Number Decode
-
C9200L indicates the fixed-uplink platform within the Cisco Catalyst 9200 Series.
-
48P indicates 48 Gigabit (10/100/1000) PoE+ access ports.
-
4X indicates four fixed 1/10G SFP+ uplinks; each slot accepts a 1G SFP or a 10G SFP+ optic.
-
-E indicates the perpetual Network Essentials license.
