Descripción

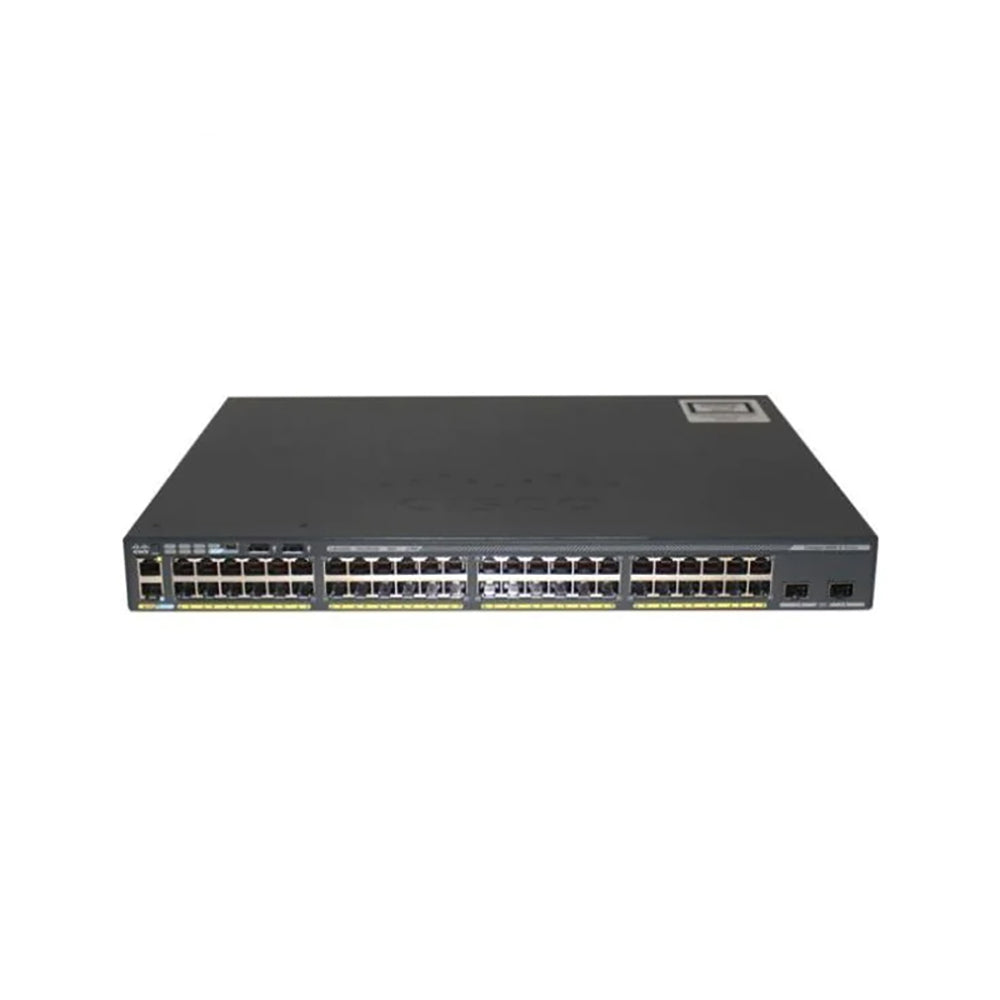

Cisco Catalyst 2960X 48LPD-L Stackable Gigabit Switch
The Cisco Catalyst 2960X-48LPD-L LAN Base stackable Gigabit Ethernet switch brings enterprise-grade PoE+ access to U.S. campus and branch environments—from medical facilities in Boston to retail stores in Manhattan.
This 1 RU rack-mountable switch offers 48 auto-sensing 10/100/1000 RJ-45 PoE+ ports delivering up to 370 W of total PoE power, plus 2 × 10 Gbps SFP+ uplinks for high-speed fiber backhaul.
It provides 216 Gbps of full-duplex switching capacity and a wire-speed forwarding rate of 130.9 Mpps, while FlexStack-Plus stacking supports up to eight units with 80 Gbps of dedicated stack bandwidth—enabling seamless network growth across multi-floor American offices.
Fully manageable via Cisco DNA Center, CLI, Web UI, SNMP, and Bluetooth-over-the-air setup, it combines secure, energy-efficient operations with operational simplicity.
Overview
Highlights
-
Ports & Uplinks
48 × 10/100/1000 RJ-45 PoE+ + 2 × 10 Gbps SFP+ for versatile copper access and fiber uplinks. -
Power over Ethernet Plus
Up to 370 W total PoE+ budget (12 ports @ 30 W or 24 ports @ 15.4 W) with Perpetual PoE to maintain power through switch reloads. -
FlexStack-Plus Stacking
Stack up to eight switches with 80 Gbps of inter-switch bandwidth—ideal for U.S. branch offices spanning multiple floors. -
High Performance
216 Gbps full-duplex switching capacity (LAN Base) and 130.9 Mpps forwarding rate (64-byte L3 packets) for mission-critical traffic. -
Cisco IOS LAN Base Feature Set
Provides robust Layer 2 switching with industry-standard VLAN, STP/RSTP/MSTP, link aggregation, and static IPv4 routing support. -
Routing & Visibility
Supports OSPF, static routing, and RIP for routed access, plus DNS-AS and Flexible NetFlow for granular traffic analytics. -
Enterprise-Grade Security
MAC-based VLANs, 802.1X authentication, SPAN, BPDU Guard, ACLs, IP Source Guard, and Dynamic ARP Inspection to meet stringent compliance requirements. -
Energy Efficiency & Quiet Operation
IEEE 802.3az Energy-Efficient Ethernet and Perpetual PoE reduce power draw; acoustic noise at just 39 dB(A) typical / 43 dB(A) max keeps open-office noise to a minimum. -
Flexible Management
Manage via CLI, Web UI (Cisco Configuration Professional), SNMP v1/v2c/v3, Cisco Network Plug and Play, Cisco DNA Center, or Bluetooth-over-the-air setup.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C2960X-STACK | FlexStack-Plus Module | Hot-swappable stacking module for up to 8 Catalyst 2960-X switches (80 Gbps) |
| CAB-STK-E-0.5M | Stacking Cable | 0.5 m FlexStack-Plus stacking cable for back-panel module connections |
| GLC-LH-SMD | SFP Transceiver | 1000BASE-LX/LH single-mode fiber, up to 10 km, DOM support |
| GLC-SX-MMD | SFP Transceiver | 1000BASE-SX multimode fiber, up to 550 m, DOM support |
| CAB-CONSOLE-RJ45 | Console Cable | 6 ft RJ-45 to DB9F serial console cable for CLI access |
| CAB-CONSOLE-USB | Console Cable | 6 ft USB Type-A to Mini-B console cable for out-of-band management |
| PWR-RPS2300 | Redundant Power System Option | Cisco Redundant Power System 2300 for AC failover and enhanced uptime |
| RCKMNT-REC-2KX | Rack-Mount Kit | 1 RU recessed rack-mount kit for standard 19″ racks |
Comparison with Similar Models
| Feature | 2960X-48LPD-L | 2960X-48TD-L | 2960X-48FPD-L |
|---|---|---|---|
| Ports & Uplinks | 48 × 1 GbE PoE+ + 2 × 10 GbE SFP+ | 48 × 1 GbE + 2 × 10 GbE SFP+ | 48 × 1 GbE PoE+ + 2 × 10 GbE SFP+ |
| PoE Capability | 370 W total | None | 740 W total |
| Switching Capacity | 216 Gbps full-duplex | 216 Gbps full-duplex | 216 Gbps full-duplex |
| Forwarding Performance | 130.9 Mpps | 130.9 Mpps | 130.9 Mpps |
| Fan & Noise | Variable-speed fans; 39 dB(A)/43 dB(A) | Variable-speed fans; 42 dB(A)/46 dB(A) | Variable-speed fans; 39 dB(A)/43 dB(A) |
| Dimensions (H×D×W) | 1.75″ × 14.5″ × 17.5″ | 1.75″ × 11.0″ × 17.5″ | 1.75″ × 14.5″ × 17.5″ |
| Ideal Use Case | PoE+ for IP phones & Wi-Fi APs in medium-sized U.S. branches | Non-PoE high-density uplink for data centers | High-PoE+ endpoints (cameras, lighting) in smart buildings |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | WS-C2960X-48LPD-L |
| Enclosure | 1 RU rack-mountable |
| Feature Set | Cisco IOS LAN Base |
| Ethernet Ports | 48 × 10/100/1000 RJ-45 PoE+ auto-sensing |
| PoE Power Budget | 370 W total (12×30 W or 24×15.4 W) |
| Uplink Interfaces | 2 × 10 Gbps SFP+ |
| Stacking | FlexStack-Plus up to 8 units; 80 Gbps stack bandwidth |
| Switching Capacity | 216 Gbps full-duplex |
| Forwarding Performance | 130.9 Mpps (64-byte L3) |
| MAC Address Table | 16 K entries |
| Jumbo Frame Support | Up to 9,216 bytes |
| CPU & Memory | Dual-core 600 MHz CPU; 512 MB DRAM; 128 MB Flash |
| Management Interfaces | CLI, Web UI (Cisco Configuration Professional), SNMP v1/v2c/v3, RMON, SSH, Telnet, RJ-45/USB console, Bluetooth-over-the-air; Cisco DNA Center & Plug and Play |
| Power Supply | Internal 100–240 VAC, 50–60 Hz; typical switch draw < 55 W (excl. PoE) |
| Redundant Power Option | Cisco RPS 2300 support |
| Operating Temperature | 23 °F to 113 °F (–5 °C to 45 °C) |
| Operating Humidity | 10% to 95% non-condensing |
| Acoustic Noise | 39 dB(A) typical; 43 dB(A) max |
| MTBF | 277,960 hours |
| Dimensions (H×D×W) | 1.75″ × 14.5″ × 17.5″ (4.5 × 36.8 × 44.5 cm) |
| Weight | 12.9 lb (5.8 kg) |
| Certifications & Compliance | FCC Part 15 Class A; UL 60950-1; CSA C22.2; EN/IEC 60950-1; VCCI; RoHS; WEEE |
